Device · EQ and tone

Tilt EQ

Tilts the whole spectrum around a pivot frequency. The line on the display is the exact response the device applies, drawn over the live spectrum. Drag either end to set the tilt and the marker to move the pivot.

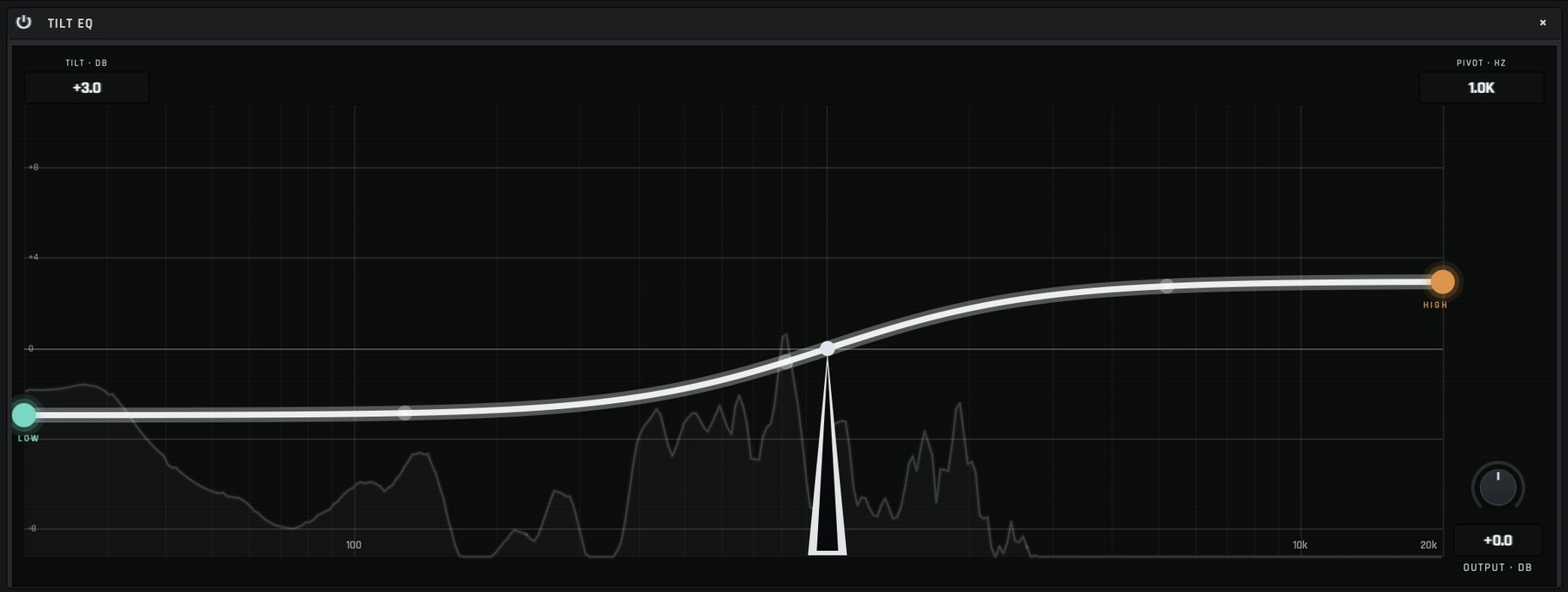

The Tilt EQ's expanded view: the response line tilted +3 dB toward the highs around a 1 kHz pivot, over the live spectrum.
Tilt EQ in its expanded view, captured while audio played.

Parameters

One-knob tonal balance — tilt the whole spectrum warm or bright around a pivot.

ParameterRangeDefault
Tilt±12 dB0
Pivot200–8000 Hz1000
Output±12 dB0

Controls and display

Surface: the seesaw is the whole face. The white beam is the exact response the device makes, drawn over the live spectrum; the fulcrum stands at the pivot; the cool LOW and warm HIGH orbs at its ends grow with the signal's low and high energy. Drag either end of the beam to tilt, drag the fulcrum sideways to move the pivot, or drag the TILT · DB / PIVOT · HZ cells at the top like console cells; double-click any of them to reset (tilt 0, pivot 1 kHz). The Output knob sits bottom-right. Works the same in the dock box and the expanded view.
